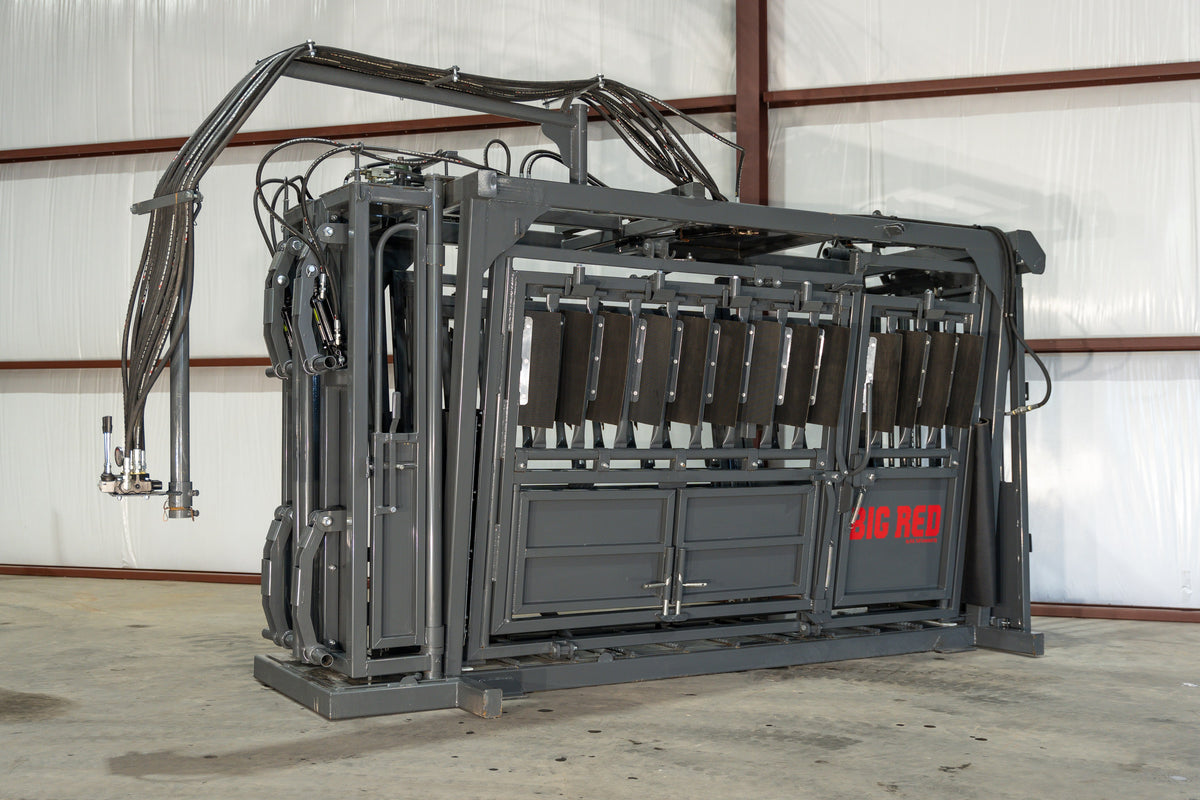

• Big Red XL cattle chute
  • Big Red XL cattle chute

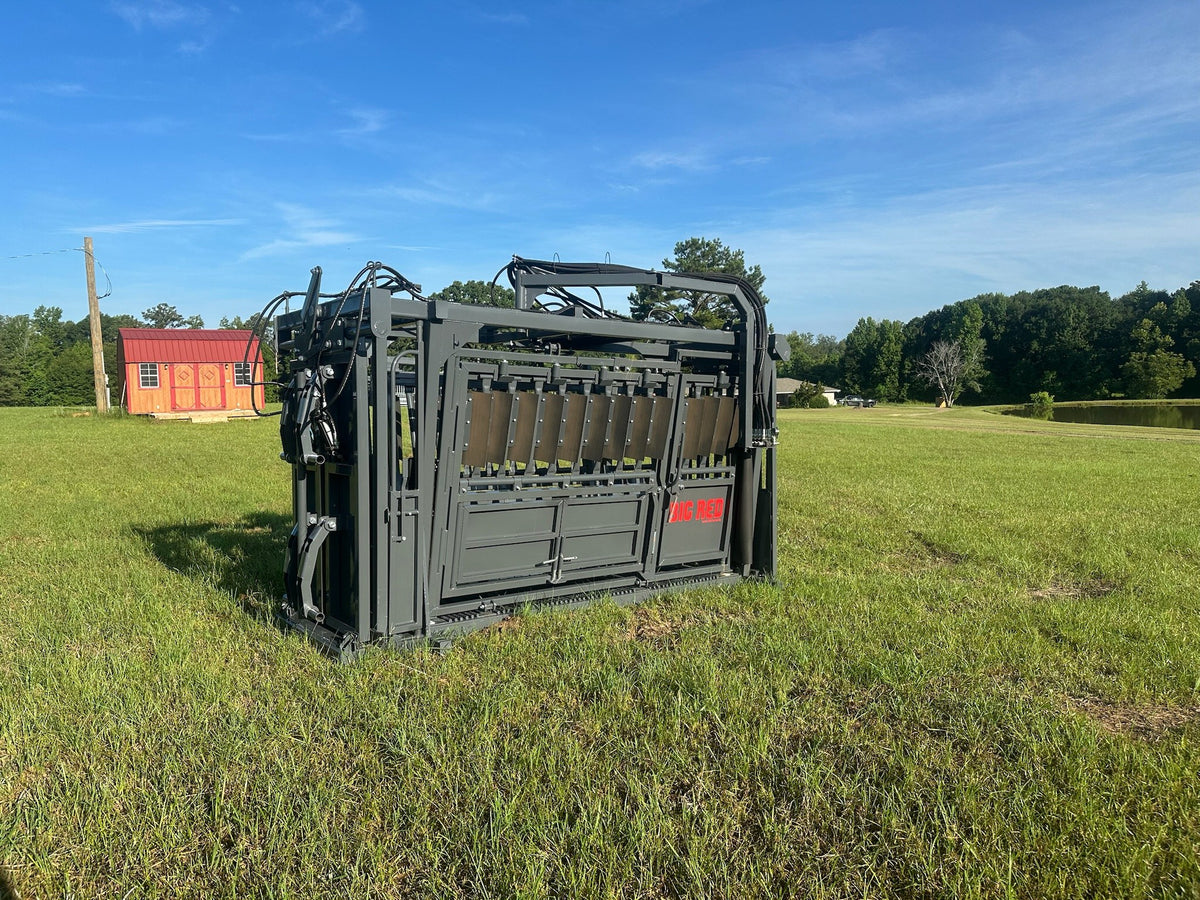

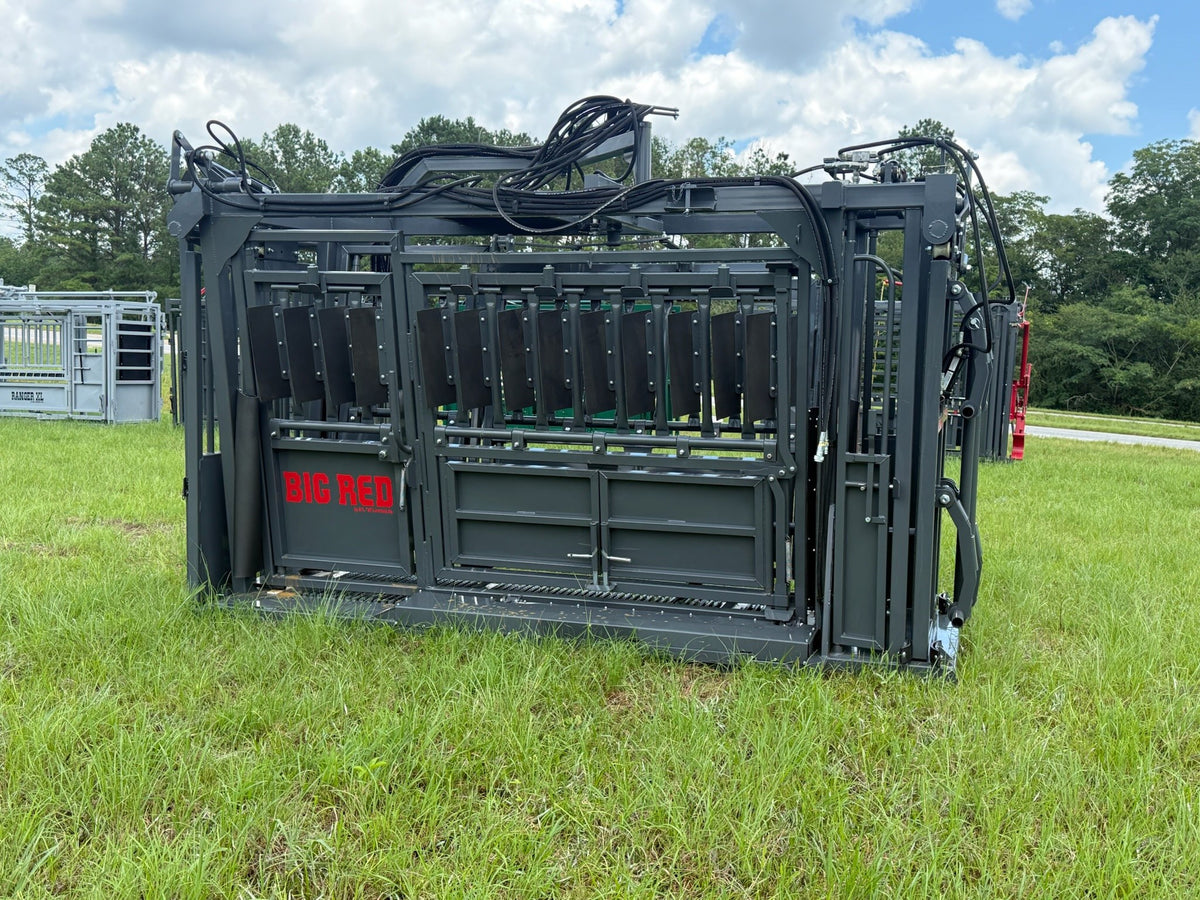

  • Big Red XL with curtain headgate

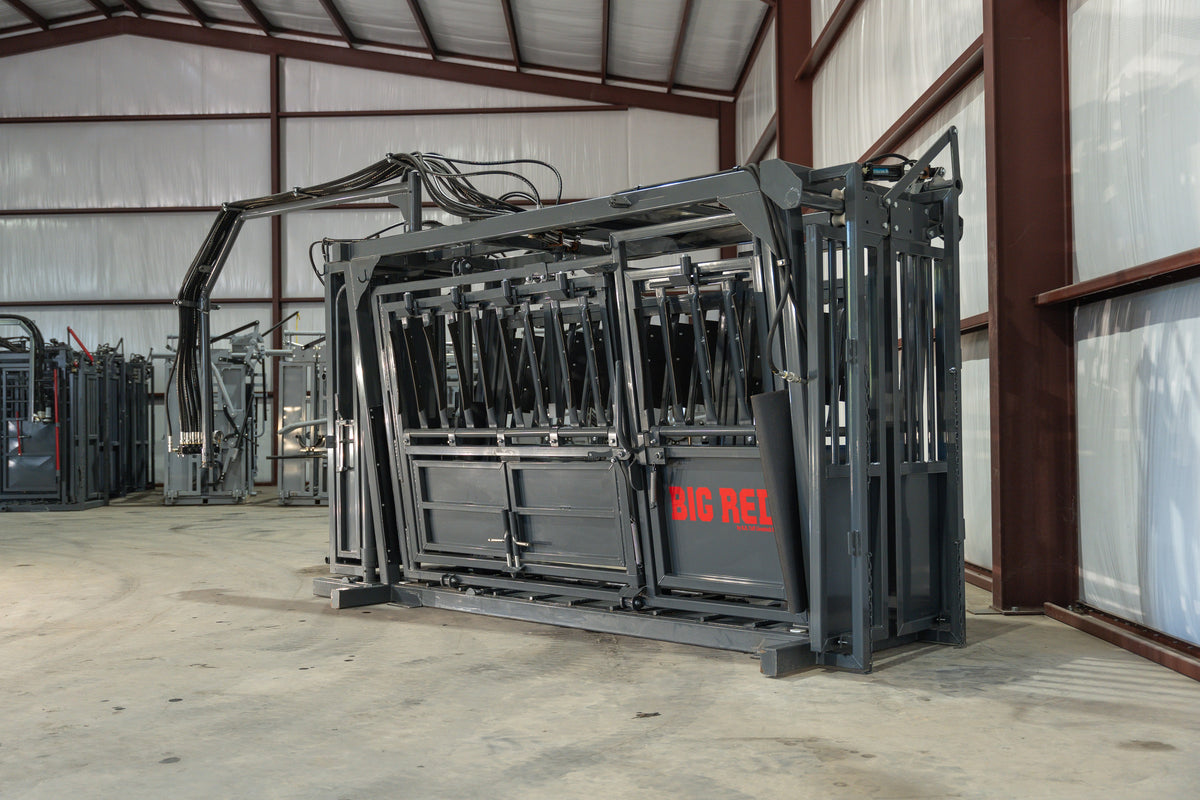

  • Big Red XL cattle chute
  • Big Red XL cattle chute
  • Big Red XL with curtain headgate
  • Big Red XL cattle chute
  • Big Red XL cattle chute
  • Big Red XL cattle chute
  • Big Red XL cattle chute
1 10

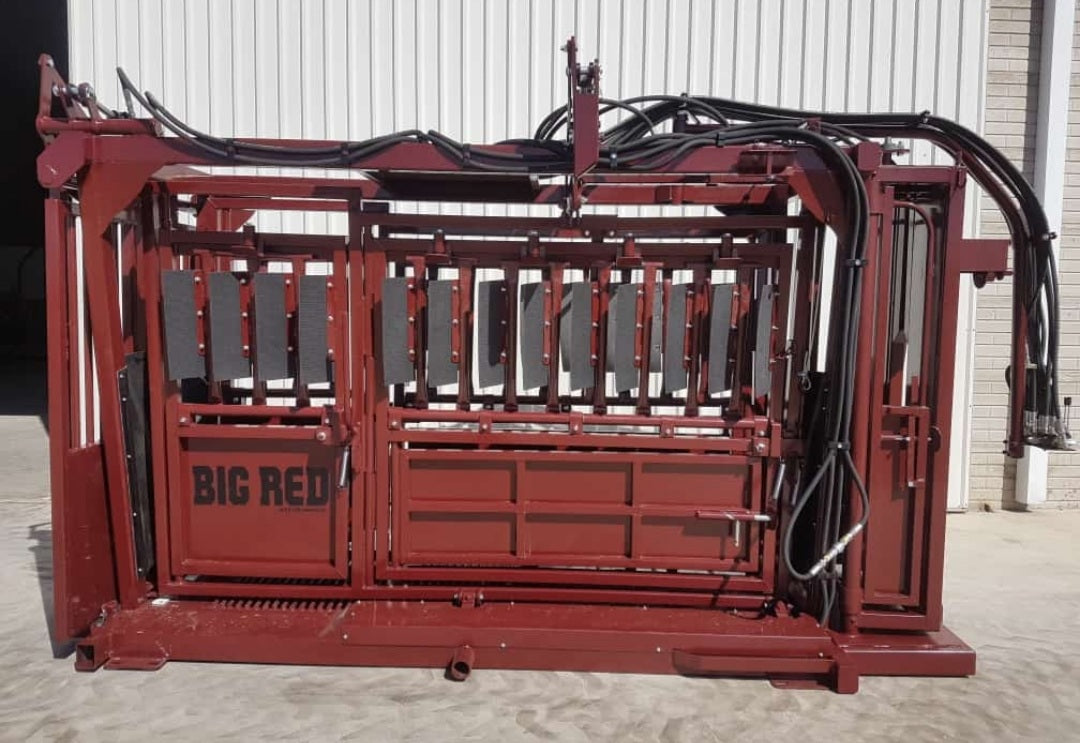

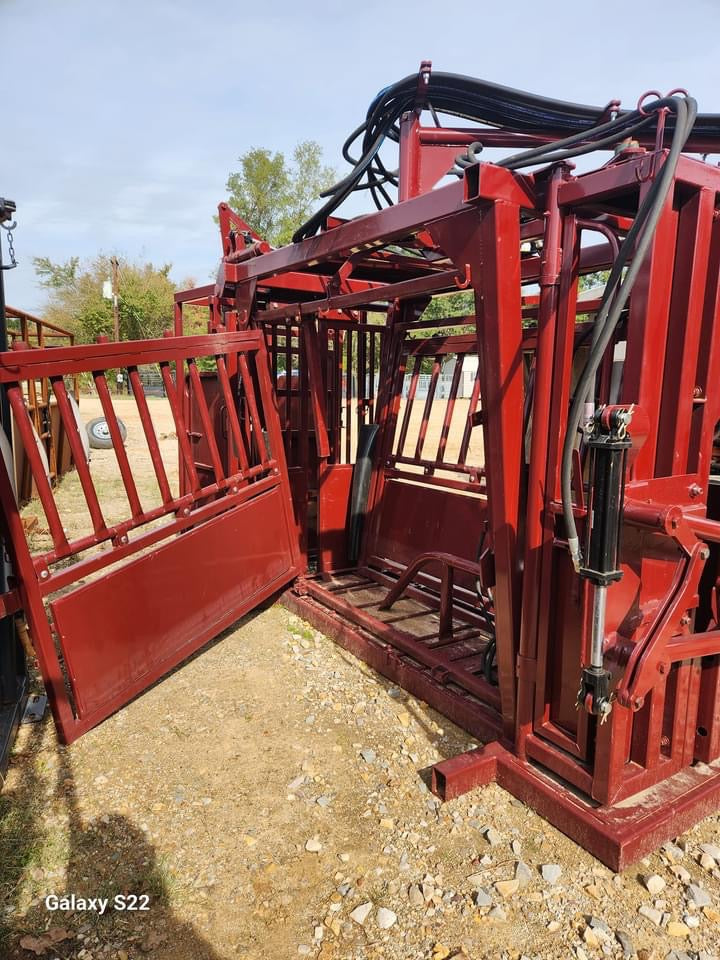

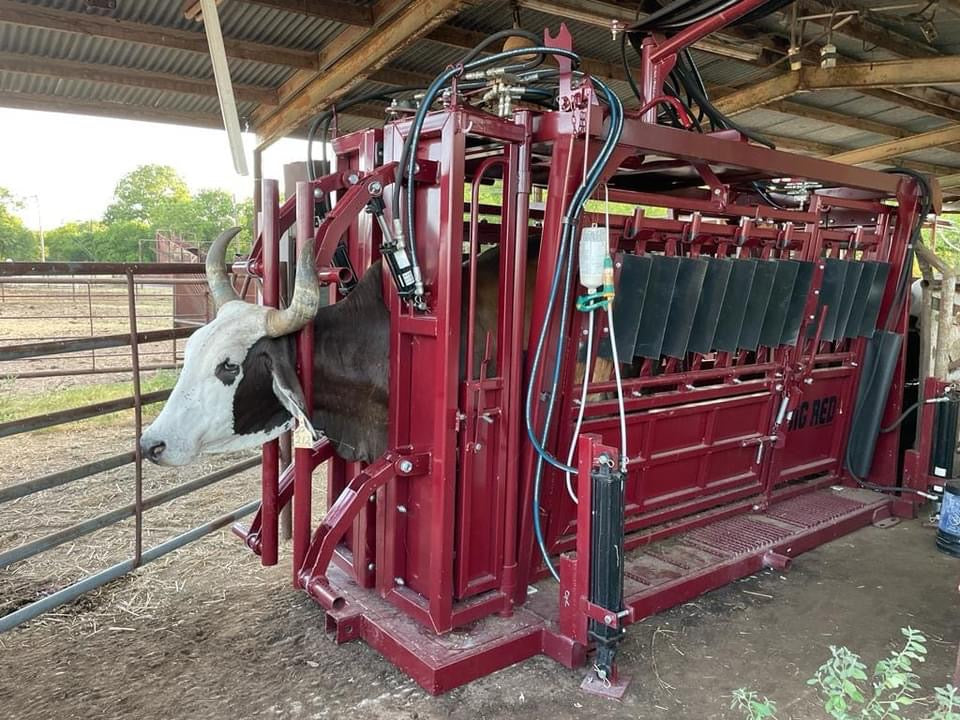

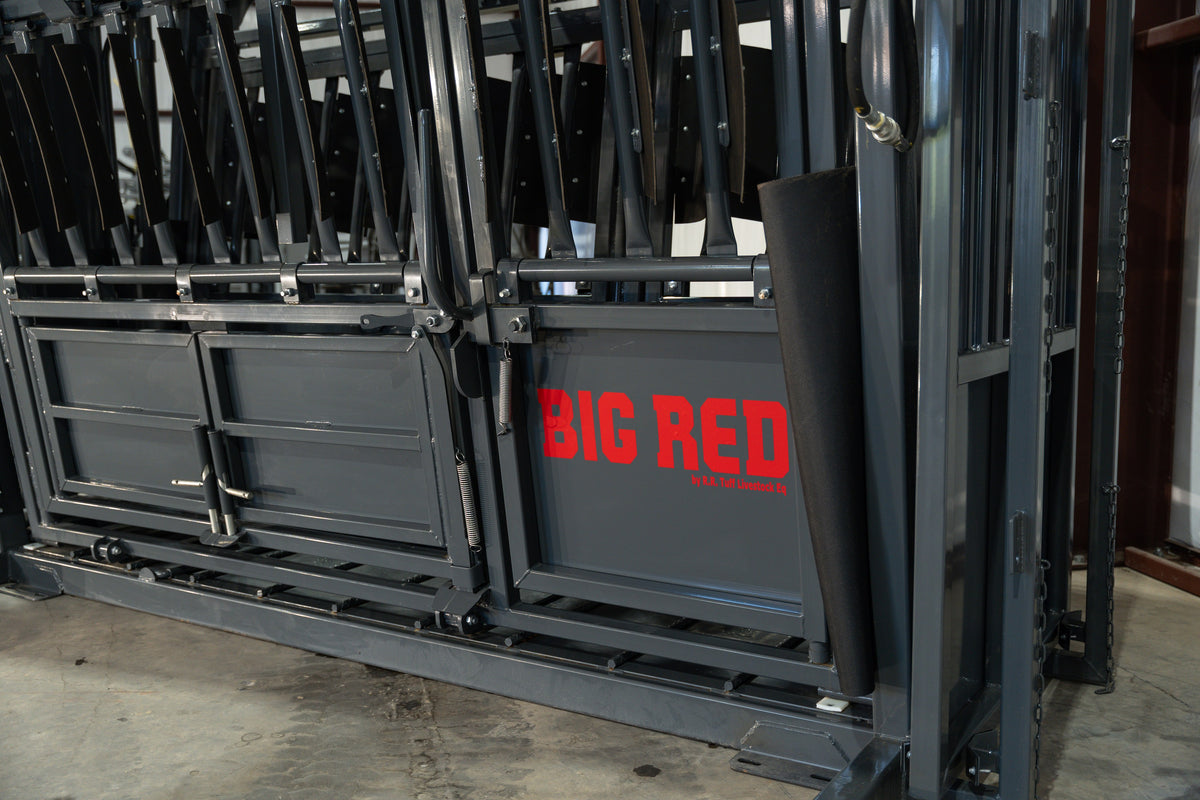

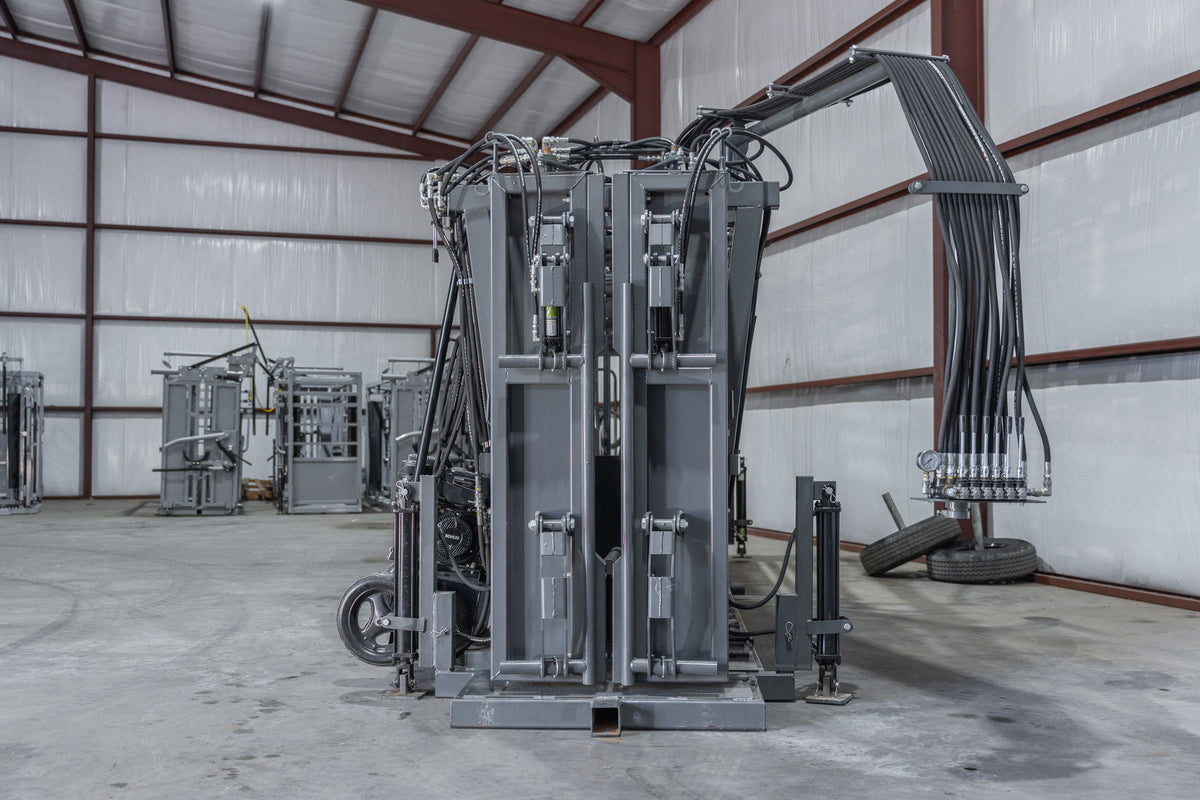

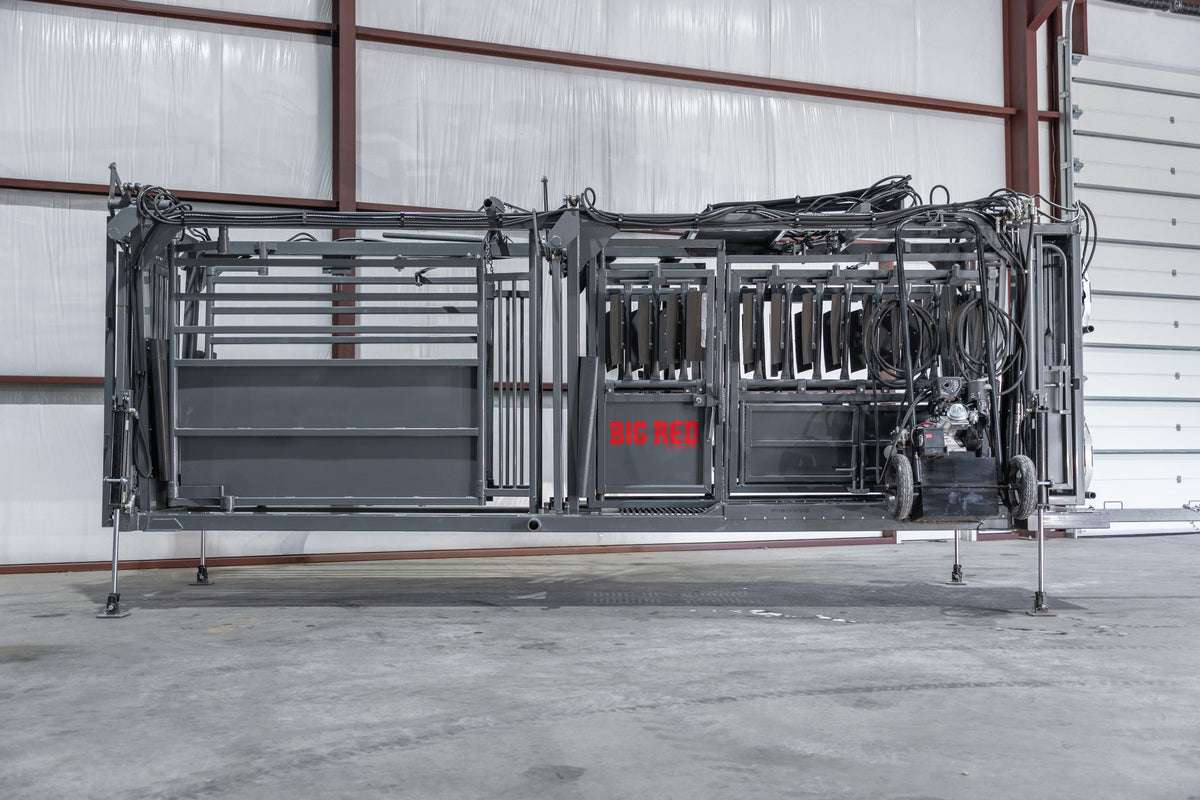

Big Red XL

Big Red XL

$17,300 base price · freight quoted separately

Compare models →

  • Size: 12' L × 48" W × 8.5' H
  • Weight: 4,500 lbs
  • Hydraulic V-squeeze, independent top and bottom

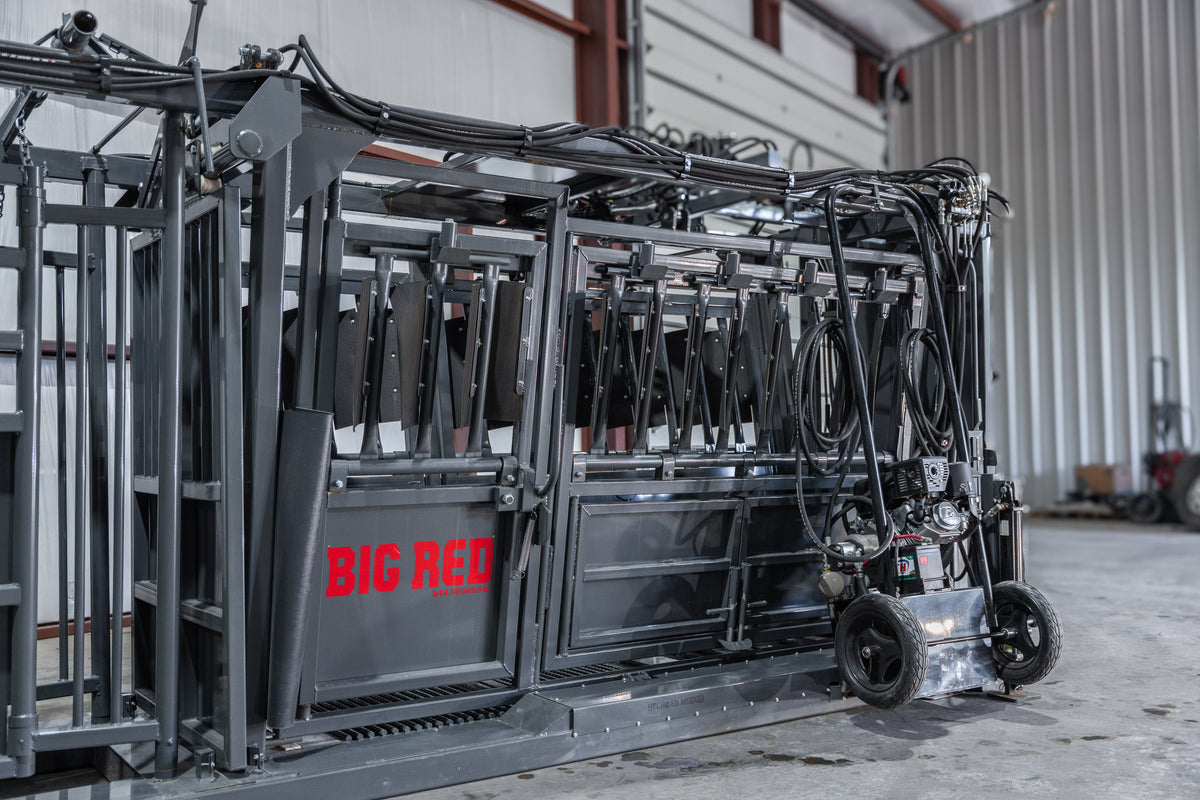

  • Power unit included: 13.5 hp Honda gas, 220 electric or 16 hp Kohler

The R&R Big Red XL is a heavy-duty hydraulic cattle chute with independent V-type top and bottom squeeze, a palpation cage on the XL model, a hydraulic head holder, and a clamshell / rotary headgate. Neck extenders and a power unit are included in the base. Choose a 13.5-horsepower Honda gas engine, 220-volt electric power requiring a 30-amp breaker, or a 16-horsepower Kohler key-start engine when you build your quote.

The XL is 12 feet long, 48 inches wide, 8.5 feet tall, and weighs 4,500 pounds. The chute squeezes from 29 inches open to 9 inches closed and has a powder-coated finish.

Standard equipment includes swing-arm controls, a sternum bar, a neck access door, rubber flaps for easier loading, and a choice of quarter-inch solid or three-quarter-inch rebar floor. A sheeted floor with grips is available at no additional charge, and a rubber floor is available for an additional $300. A head clamp can be selected instead of the standard neck extenders. A wheel kit with hydraulic lift is available for an additional $2,740.

Full specifications
SqueezeIndependent V-type top and bottom · 29" open to 9" closed
Head restraintNeck extenders standard · head clamp option (−$500) · hydraulic head holder · clamshell / rotary headgate
Power unitIn the base: 13.5 hp Honda gas · 220 electric (30 amp breaker) · 16 hp Kohler key start
Also includedSwing-arm controls · sternum bar · neck access door · rubber flaps for easier loading
Palpation cageOn the XL (Big Red, 10 ft with no cage, is $400 less)
Floor1/4" solid or 3/4" rebar floor standard · sheeted with grips no charge · rubber floor +$300
FinishFull powder coat

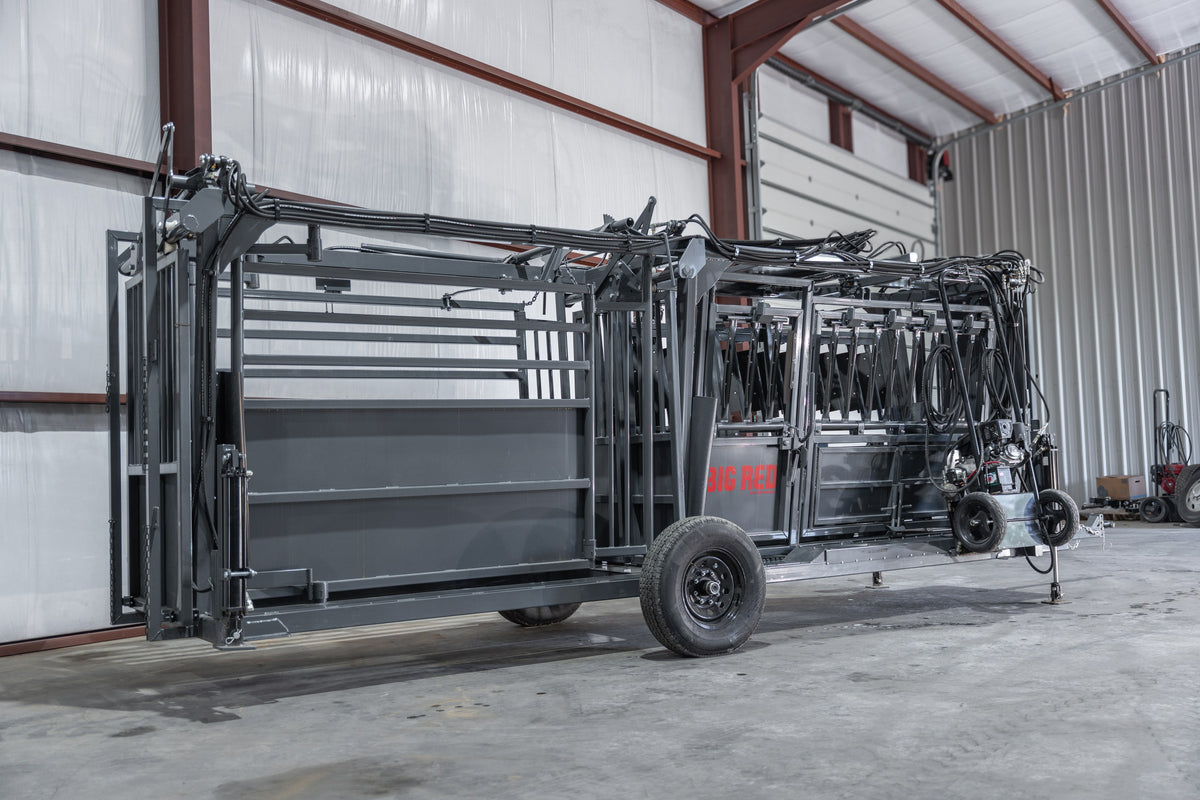

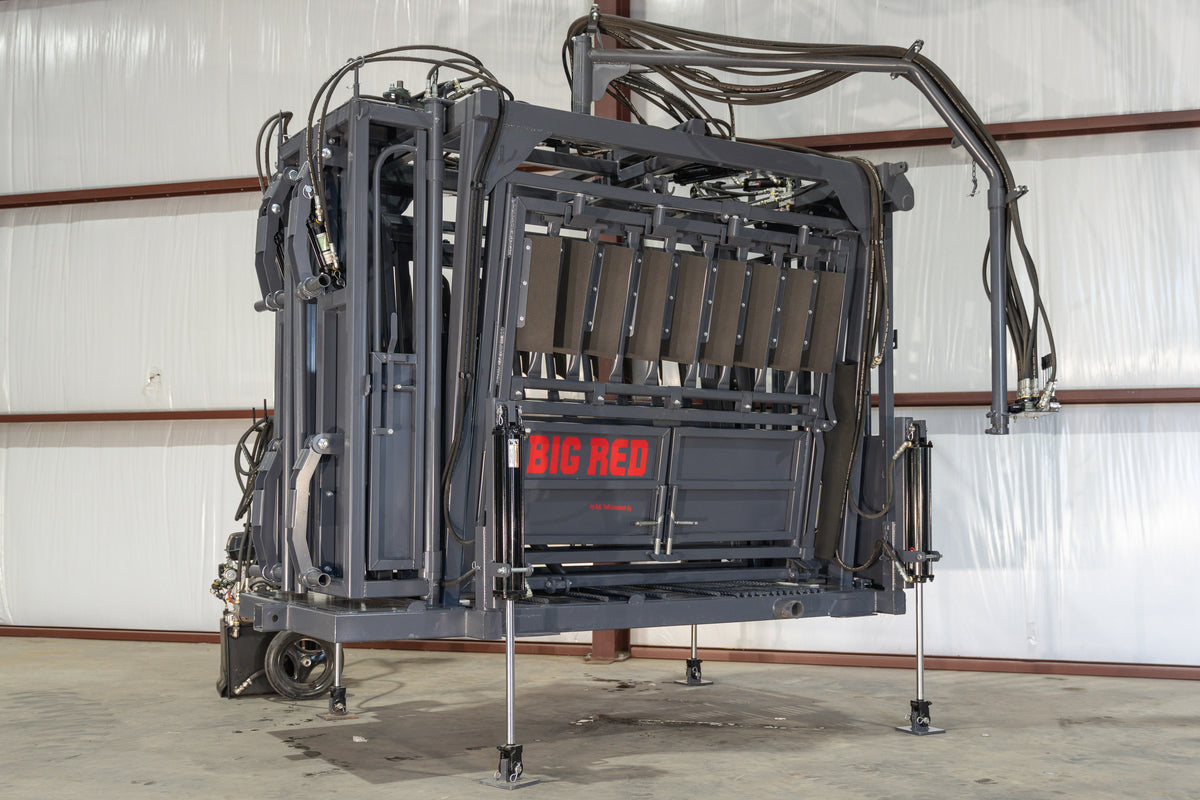

PortableWheel kit with hydraulic lift +$2,740
Choose model, power, floor and add-ons ↓

Build your quote

Choose model, floor, and add-ons. Then email for an official quote — or call with questions.

Includes

Specifications

Configuration

Pick model, power unit, and floor. This builds your quote request — no cart checkout. Neck extenders (or head clamp −$500), clamshell/rotary headgate, and a power unit are in the base — choose 13.5 hp Honda gas, 220 electric, or 16 hp Kohler. Wheel kit + hydraulic lift +$2,740.

Model
Power unit
Head restraint
Headgate style

Crash cage needs curtain headgate. Clamshell blocks Crash cage.

Floor

Optional add-ons

Select extras, then use Email for a quote below.

Hydraulic alley options and scales platform unlock when the 8-ft adjustable alley is selected.

Estimated equipment total
$17,300.00
Neck extenders · power unit · rebar floor · freight not included

Freight: Freight is quoted separately and added on the official quote. Pickup is available; ask for locations.

Call Text Financing options

Don't see the option you're looking for, or need more customization? Use Call or Email above — we'll quote custom options.

Freight: Official quotes include equipment pricing plus freight. Freight is quoted separately — customer arranges freight or pickup. Call Francisco 903-669-4433 · Jeffery 903-304-9324 · Matt 334-590-7535 · Info@rrlivestock.com · Freight & pickup policy
