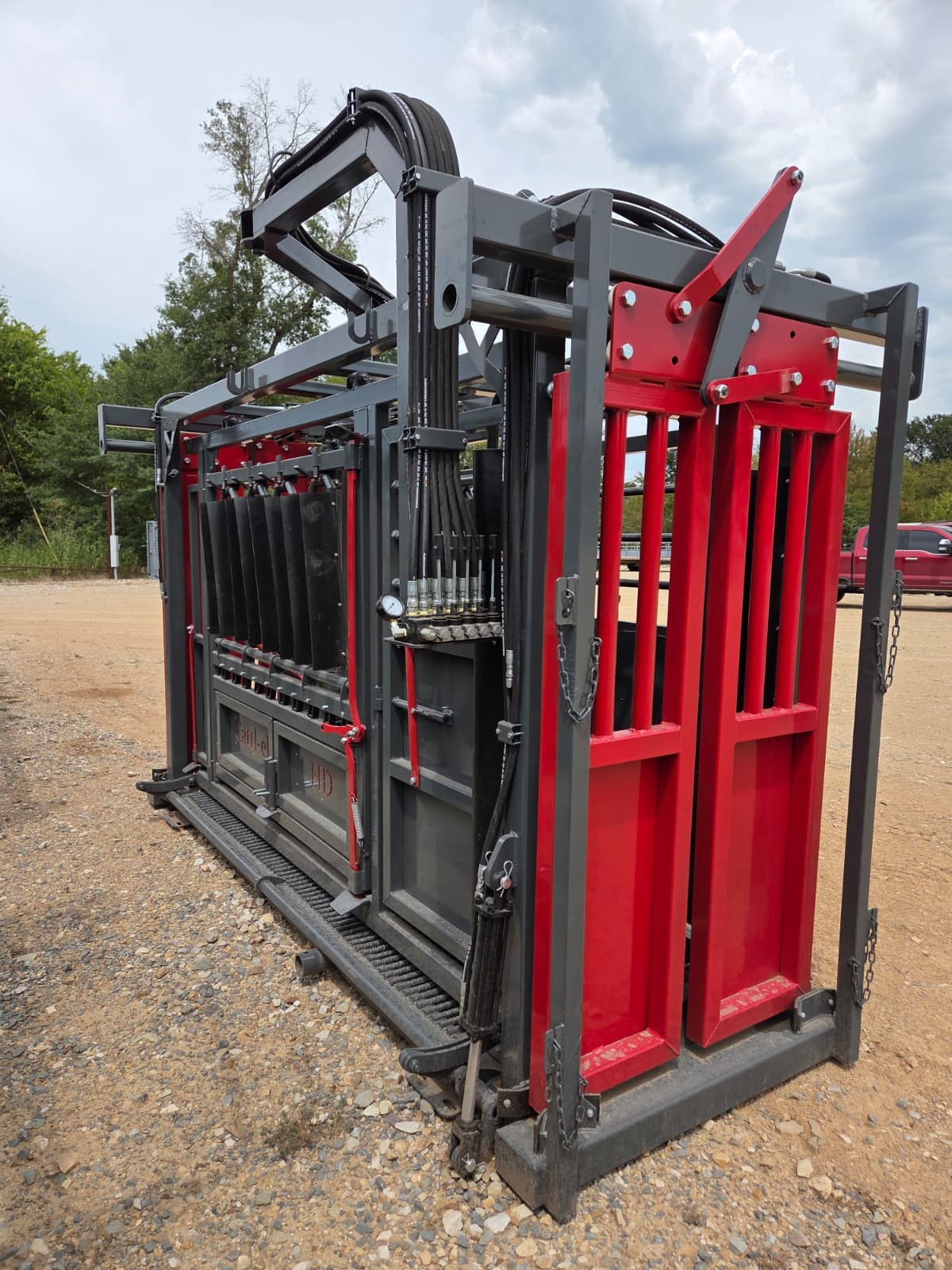

• R&R CATTL-EK HD stationary squeeze chute, three-quarter view of the red headgate
  • R&R CATTL-EK HD portable chute, full side view with the CATTL-EK HD side panel and wheel kit
  • R&R CATTL-EK HD portable chute, three-quarter view with the gas hydraulic power unit

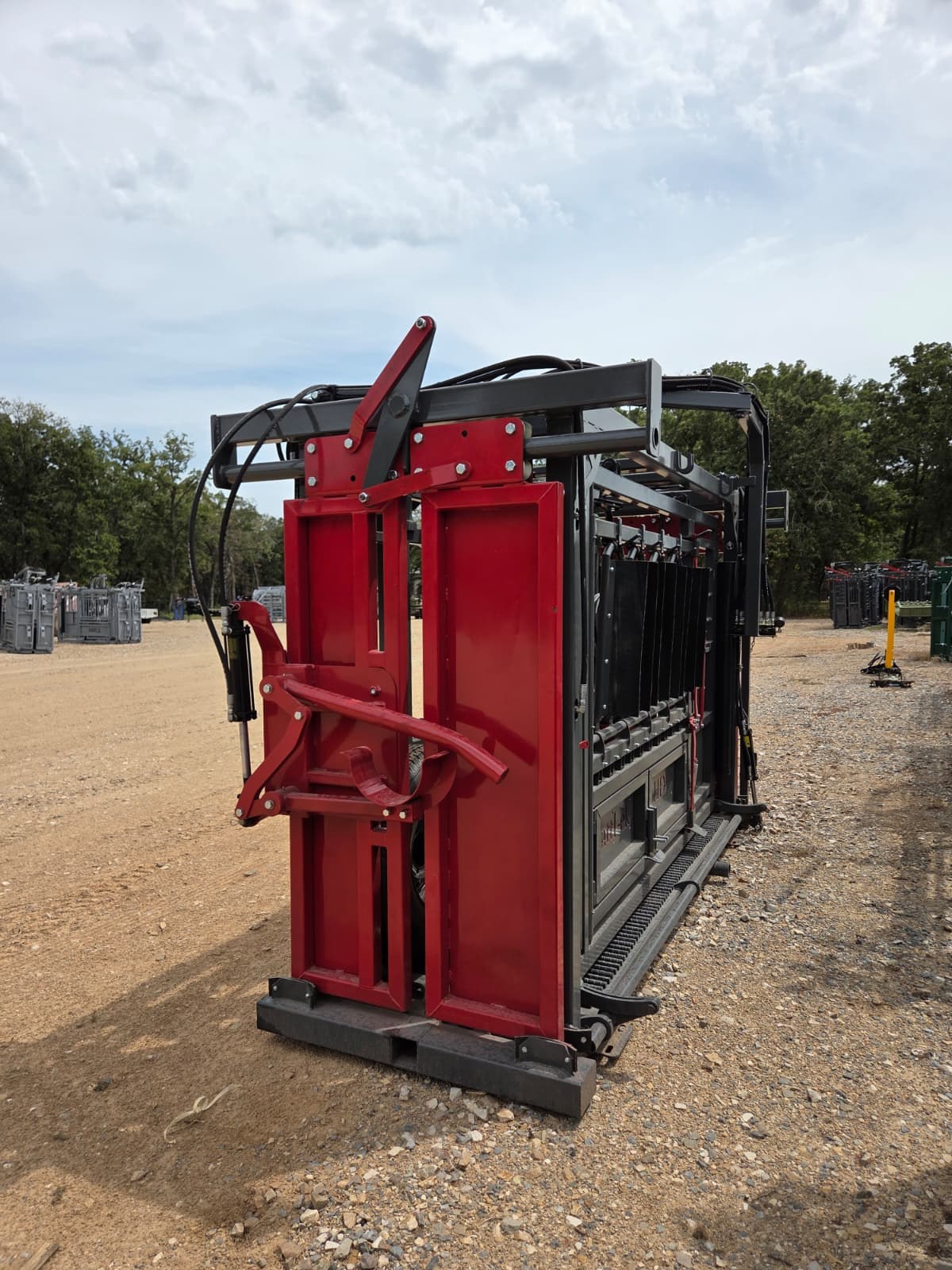

  • R&R CATTL-EK HD stationary chute, front end with the red headgate
  • R&R CATTL-EK HD portable chute, three-quarter view of the rear gate end
  • R&R CATTL-EK HD portable chute, headgate and hitch end straight on

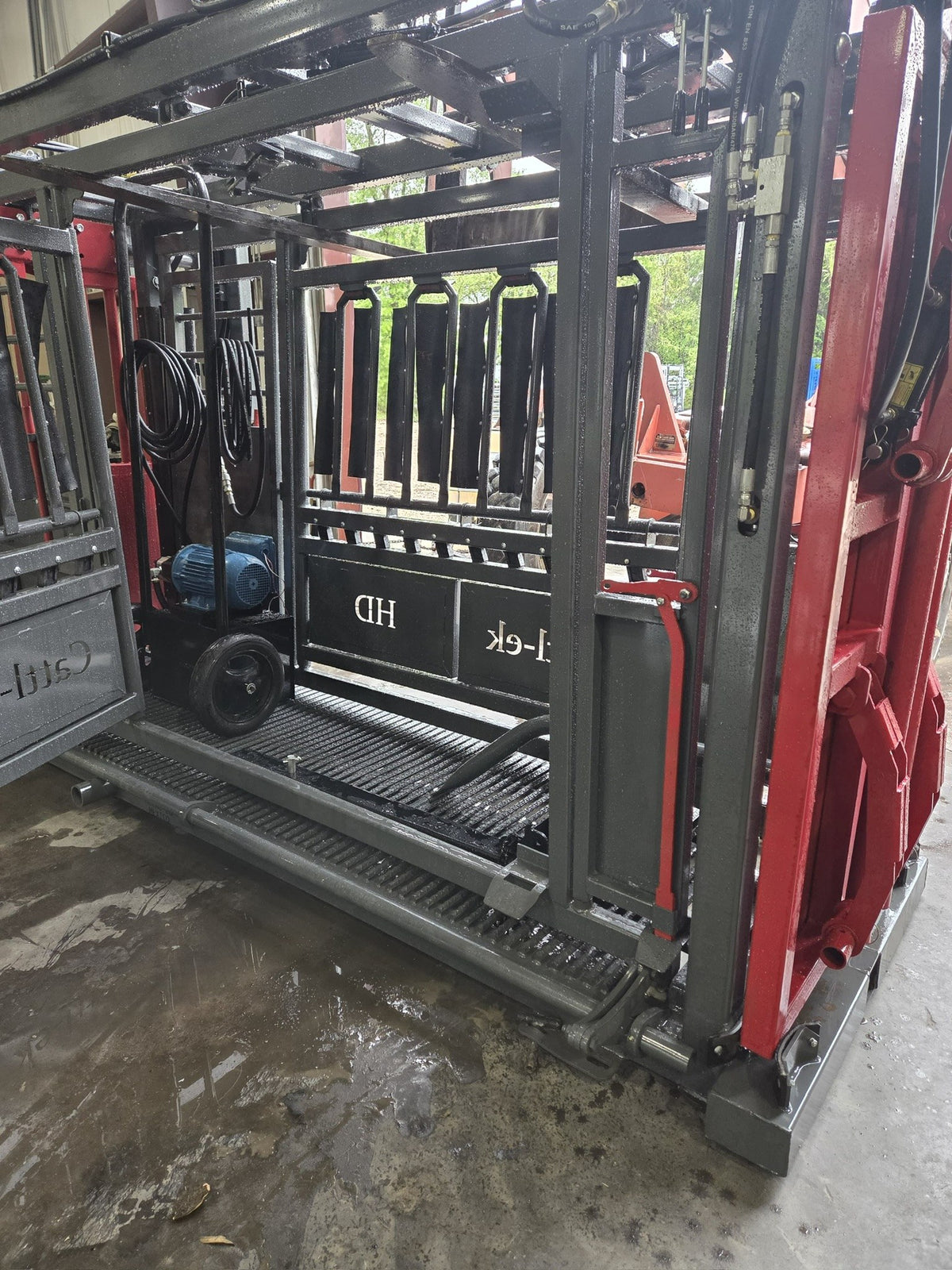

  • R&R CATTL-EK HD portable chute, inside view down the chute showing the rebar floor
  • R&R CATTL-EK HD portable chute, full side view with the wheel kit and power unit
  • R&R CATTL-EK HD portable chute, second three-quarter view of the rear gate end

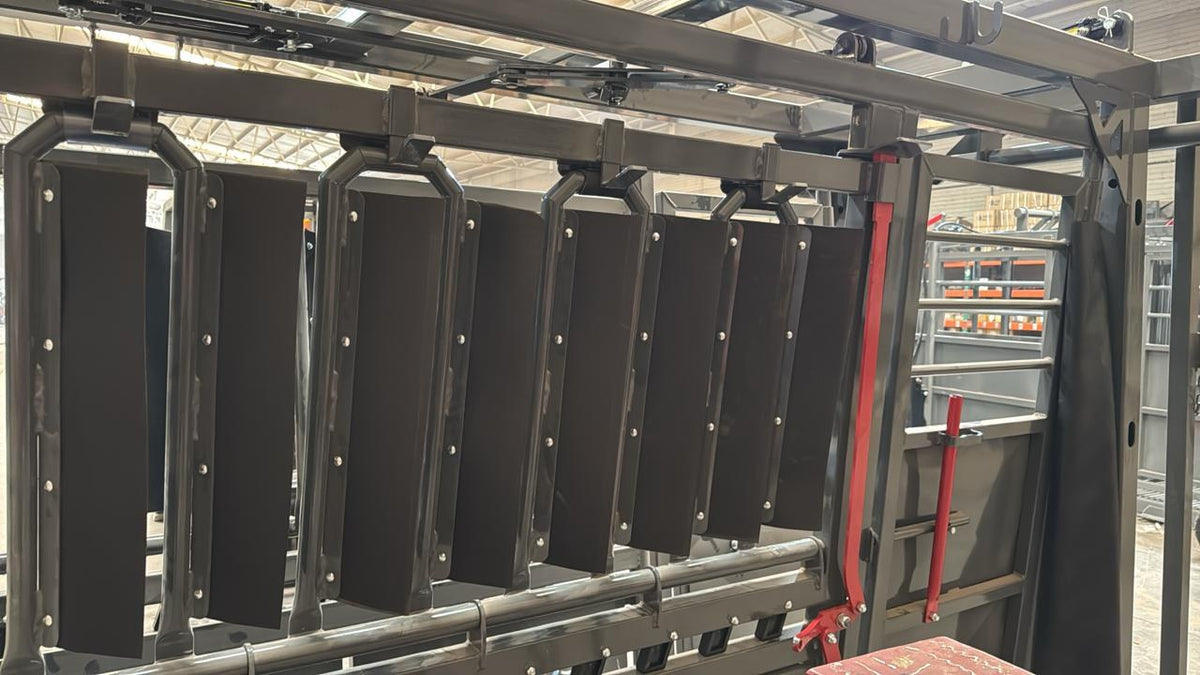

  • R&R CATTL-EK HD chute, close-up of the black side panels along the squeeze
  • R&R CATTL-EK HD portable chute, rear gate end straight on

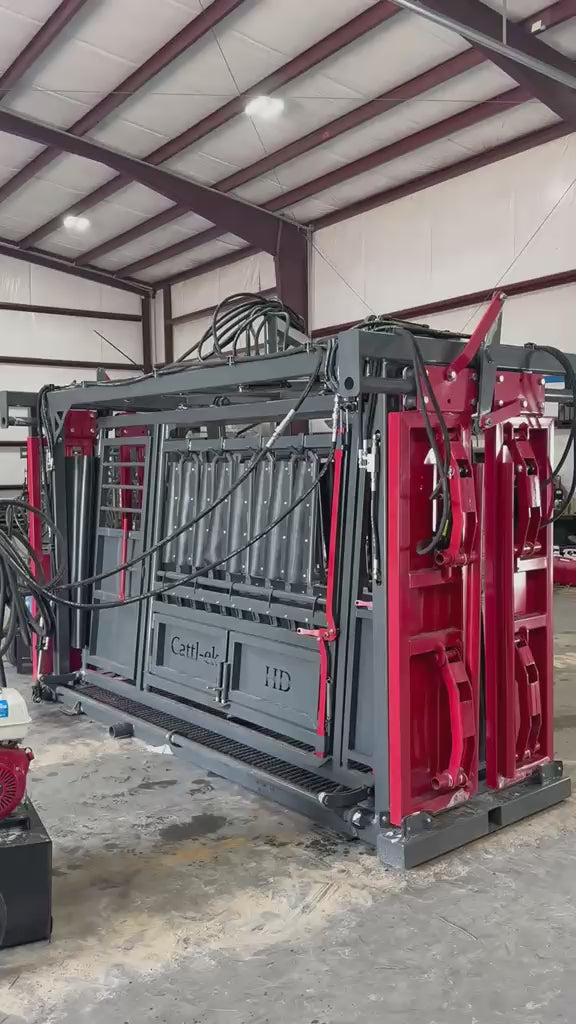

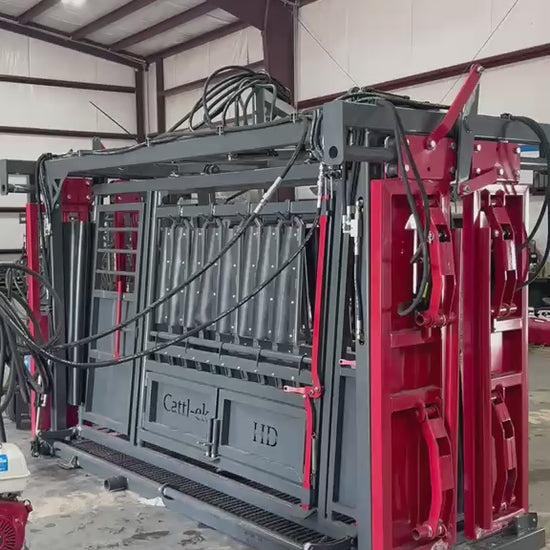

  • R&R HD hydraulic squeeze chute demo video
1 12

CATTL-EK HD

CATTL-EK HD

$17,300 base price · freight quoted separately

Compare models →

  • Size: 12' L (XL) or 10' L (without XL) × 48" W × 8.5' H
  • Weight: 4,500 lbs
  • Hydraulic V-squeeze, independent top and bottom
  • Power unit included: 13.5 hp Honda gas, 220 electric or 16 hp Kohler

The R&R CATTL-EK HD is a heavy-duty hydraulic cattle chute with independent V-type top and bottom squeeze, a palpation cage on the HD model, neck extenders, and a power unit built into the base. Choose a 13.5-horsepower Honda gas engine, 220-volt electric power requiring a 30-amp breaker, or a 16-horsepower Kohler key-start engine when you build your quote.

The HD is 12 feet long, 48 inches wide, 8.5 feet tall, and weighs 4,500 pounds. The chute squeezes from 34 inches open to 12 inches closed and has a powder-coated finish.

Standard equipment includes an articulating control arm, sternum bar, ratcheting anti-backup bar, and a quarter-inch solid floor with rebar on top. A sheeted floor with grips is available at no additional charge, and a rubber floor is available for an additional $300. A head clamp can be selected instead of the standard neck extenders.

Choose a stationary model or a portable model with a wheel kit and hydraulic lift.

Full specifications
SqueezeIndependent V-type top and bottom · 34" open to 12" closed
Head restraintNeck extenders standard · head clamp option (−$500)
Power unitIn the base: 13.5 hp Honda gas · 220 electric (30 amp breaker) · 16 hp Kohler key start
Also includedArticulating control arm · sternum bar · ratcheting anti-backup bar
XL optionPalpation cage (12 ft). Without XL: 10 ft, $400 less.
Floor1/4" solid floor with rebar on top standard · sheeted with grips no charge · rubber floor +$300
FinishFull powder coat
ModelStationary, or portable with wheel kit and hydraulic lift +$2,740
Choose model, power, floor and add-ons ↓

Build your quote

Choose model, portability, floor, and add-ons. Then email for an official quote — or call with questions.

Includes

Specifications

Configuration

Pick the XL option, portability, power unit, head restraint, and floor. This builds your quote request — no cart checkout. Neck extenders (or head clamp −$500) and a power unit are in the base — choose 13.5 hp Honda gas, 220 electric, or 16 hp Kohler. Portable = wheel kit + lift +$2,740.

XL option
Portability
Power unit
Head restraint
Floor

Optional add-ons

Select extras, then use Email for a quote below.

Estimated equipment total
$17,300.00
Stationary · neck extenders · power unit · rebar floor · freight not included

Freight: Freight is quoted separately and added on the official quote. Pickup is available; ask for locations.

Call Text Financing options

Don't see the option you're looking for, or need more customization? Use Call or Email above — we'll quote custom options.

Freight: Official quotes include equipment pricing plus freight. Freight is quoted separately — customer arranges freight or pickup. Call Francisco 903-669-4433 · Jeffery 903-304-9324 · Matt 334-590-7535 · Info@rrlivestock.com · Freight & pickup policy
