Rustler Portable Corral

Rustler Portable Corral

$27,500 base price · freight quoted separately

  • Two pens and a center alley, 21 ft panels each side
  • About 1,603 sq ft per pen · about 3,205 both · about 3,325 with the alley
  • Up to about 94 cow-calf pairs same day
  • Manual chute standard (hydraulic chute +$2,400), hydraulic lift, tow-ready

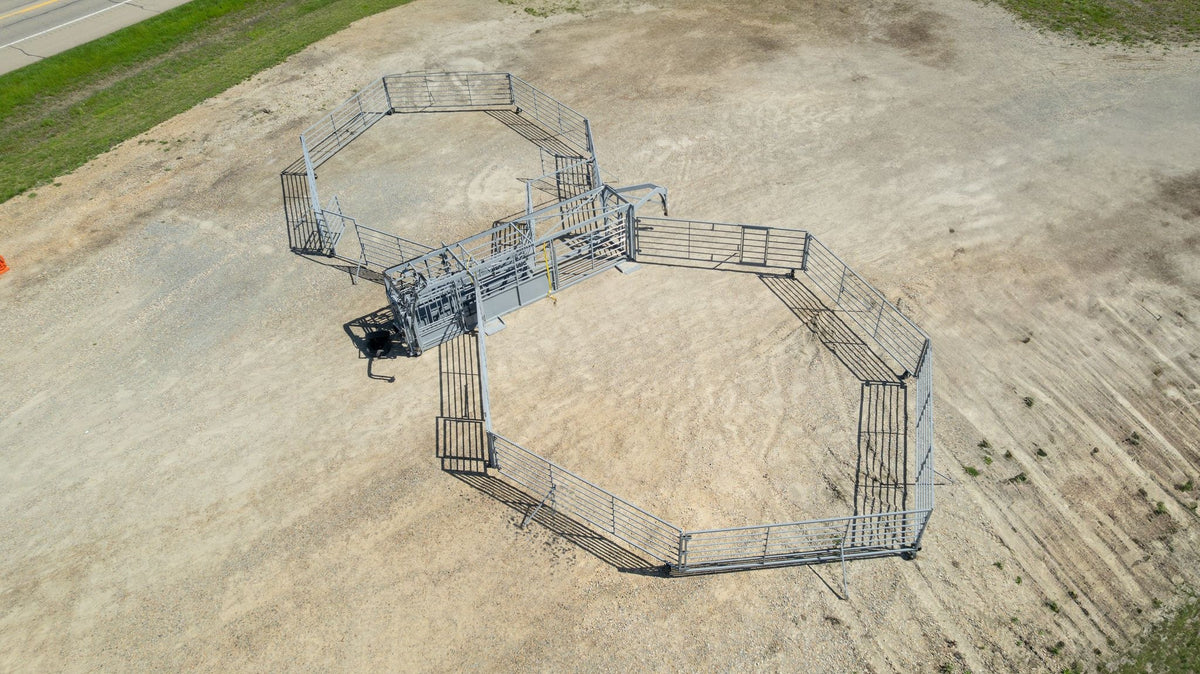

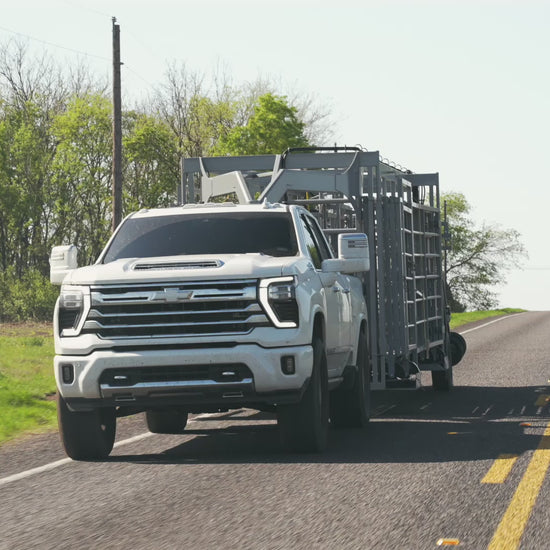

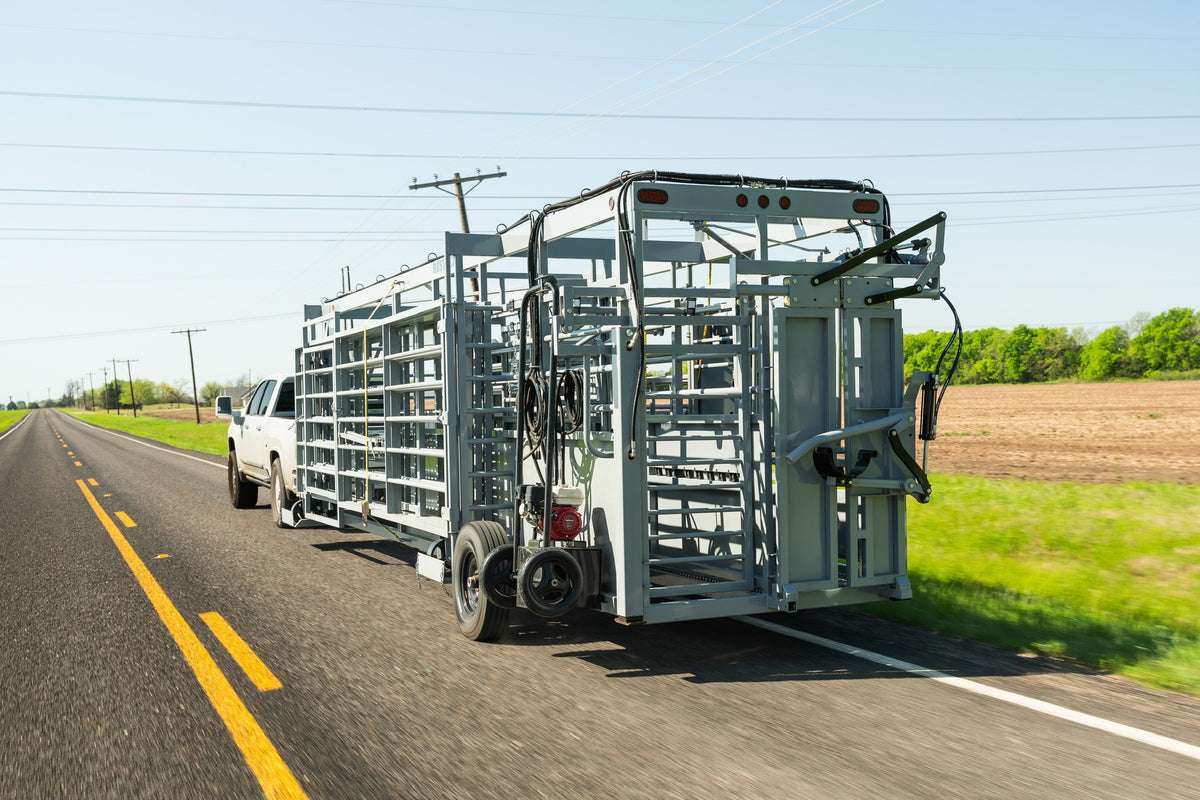

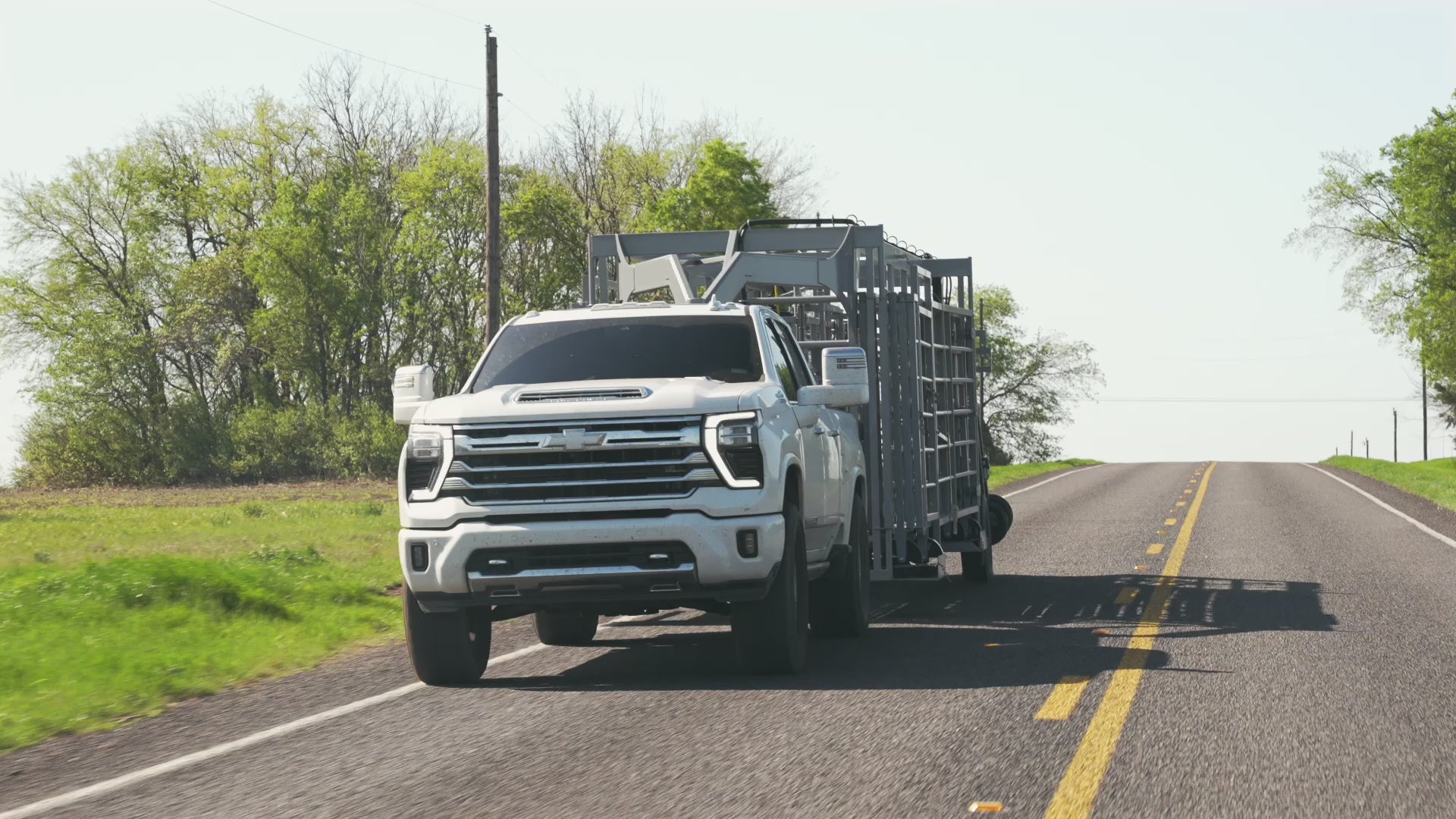

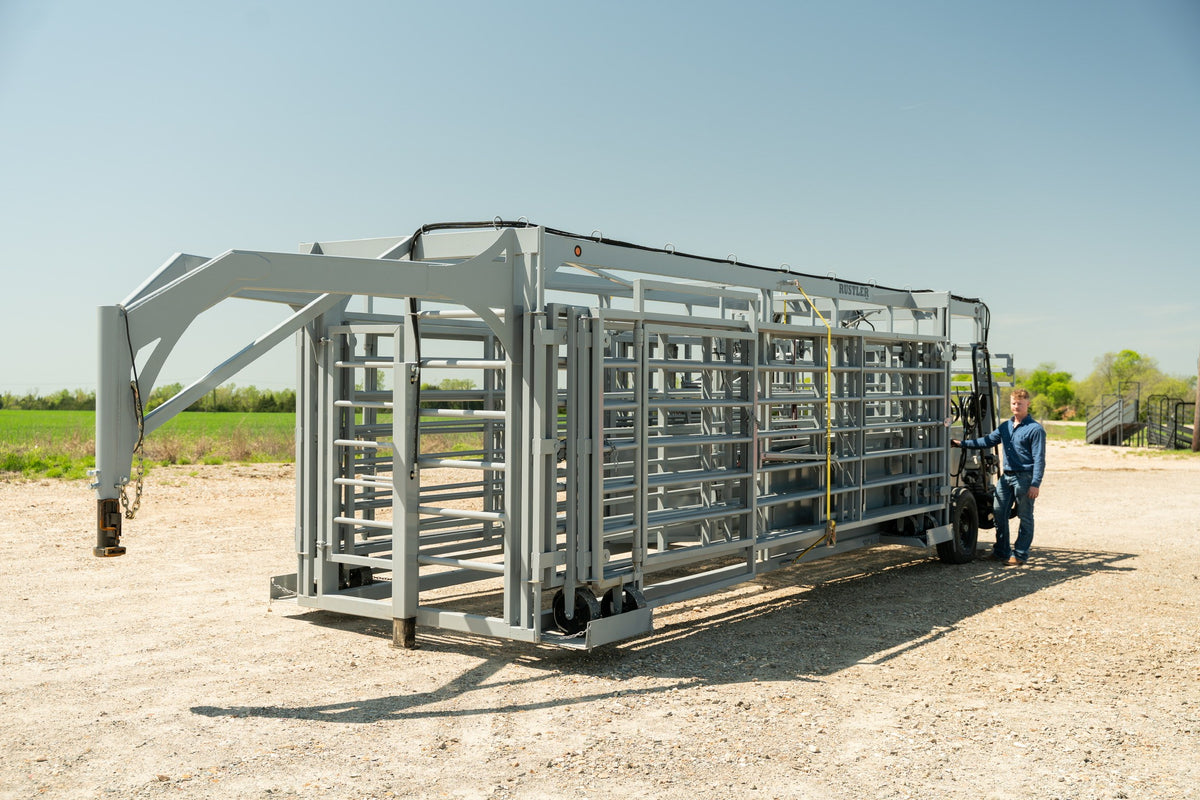

The Rustler is built so you can catch and work cattle in the pasture instead of hauling everything back to a permanent set of pens. Hook up, tow it in, and open into two pens with a center alley between them.

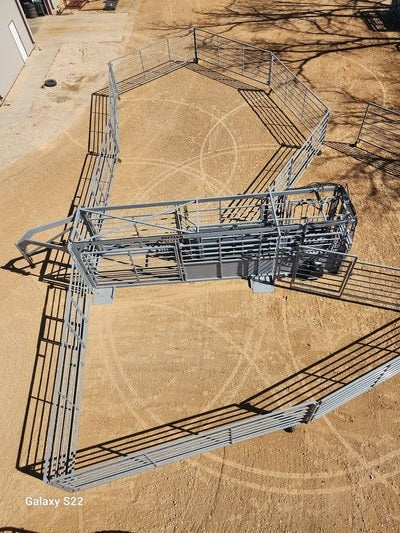

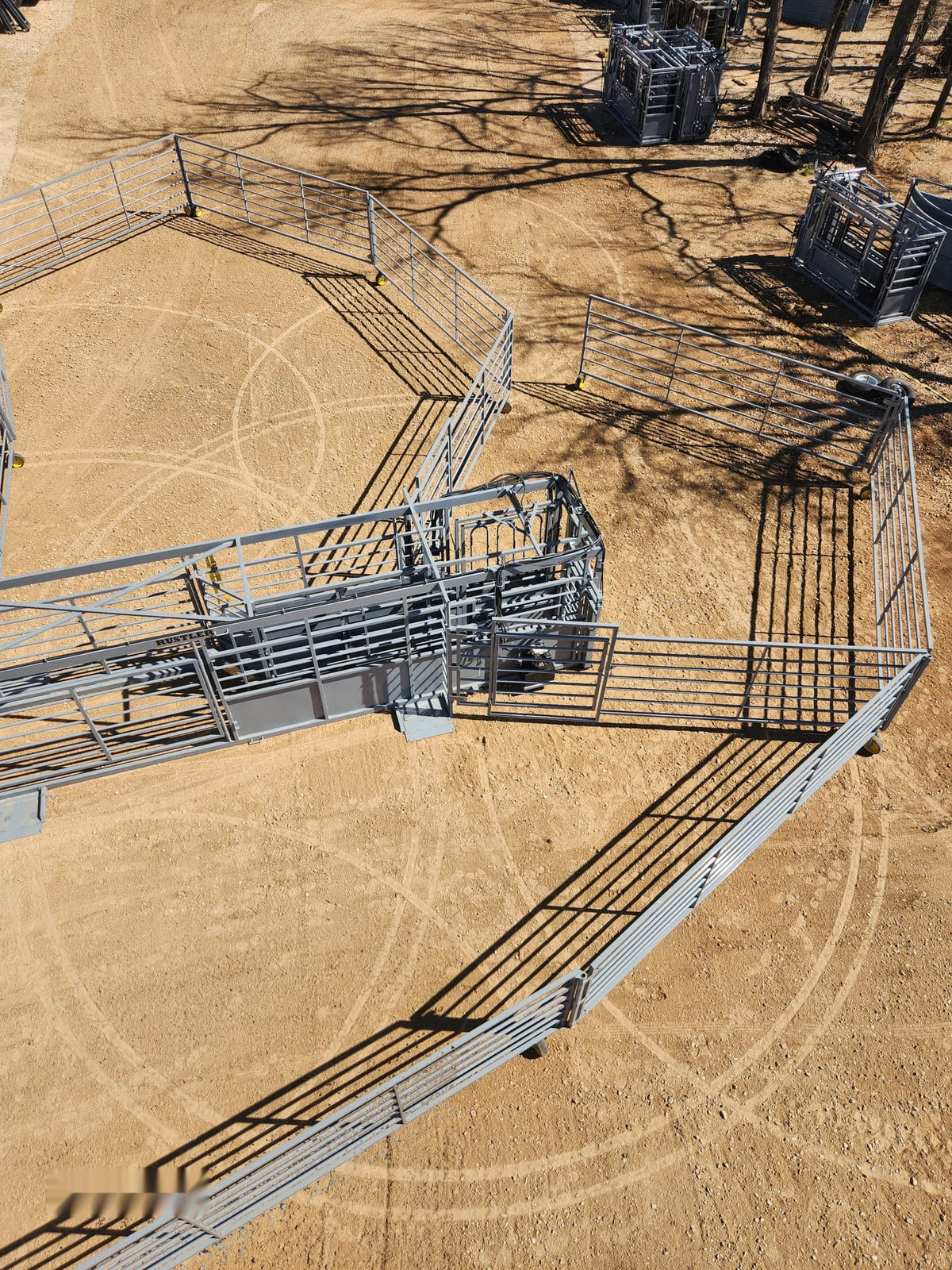

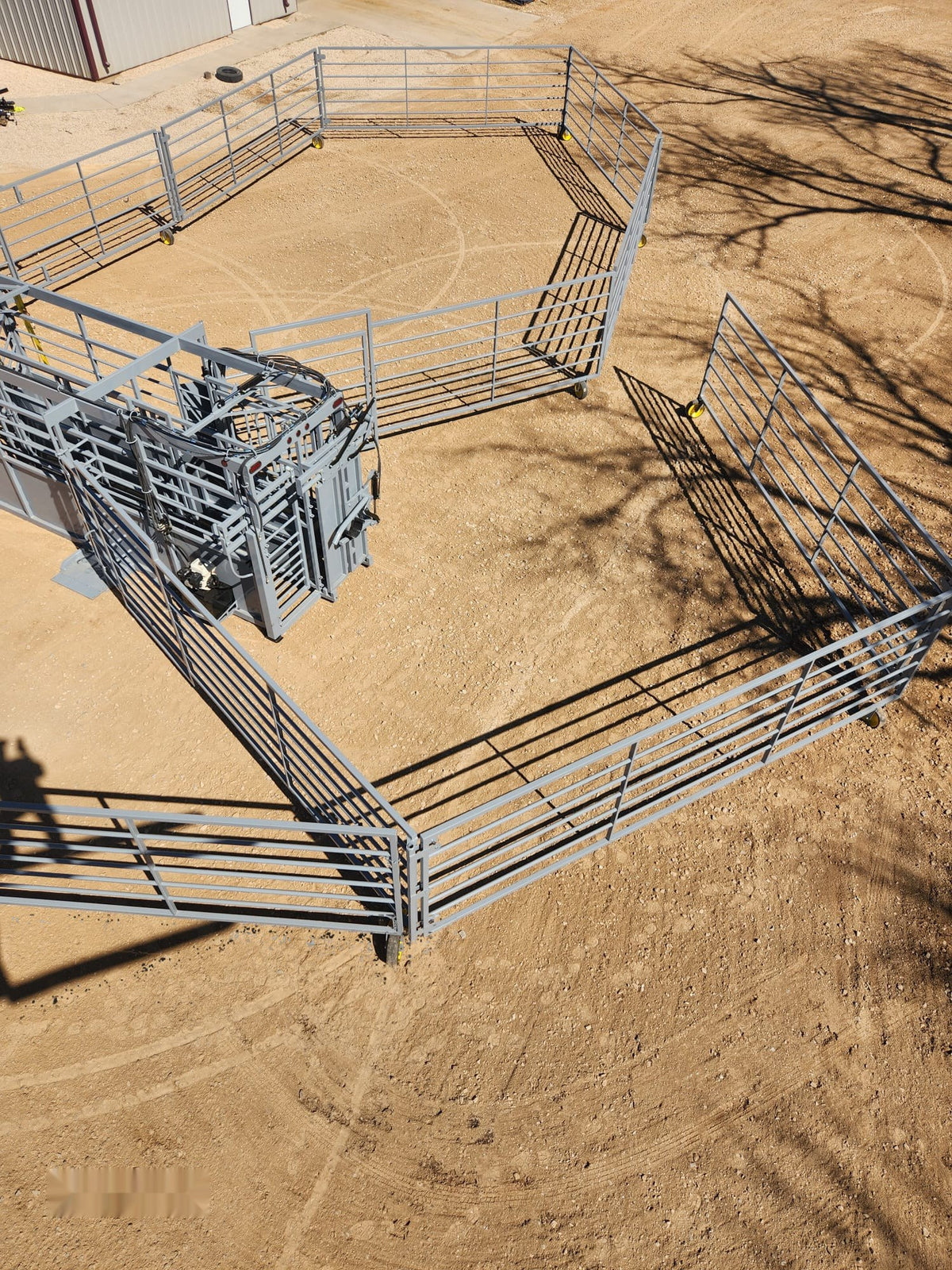

Here’s the space in plain English: 21-foot panels each side make a pen about 1,603 sq ft. Both pens together are about 3,205 sq ft. Add the 20 × 6 ft center alley and you’re at about 3,325 sq ft for the whole set. We figure head count off the pens only — not the alley.

Same-day working capacity:

  • Cows over 1,200 lb — about 160
  • Yearlings 600–1,200 lb — about 189
  • Calves under 600 lb — about 229
  • Cow-calf pairs — about 94

Ninety-four pairs is max same-day, and it’s tight if both pens are full. Most folks are more comfortable at about 55–65 pairs in the corral, with about 25–35 in the pen you’re sorting. Same day only — not overnight.

When you shop corrals, compare square feet of pen space. Pair counts on the internet aren’t all figured the same way. We don’t advertise 120 pairs.

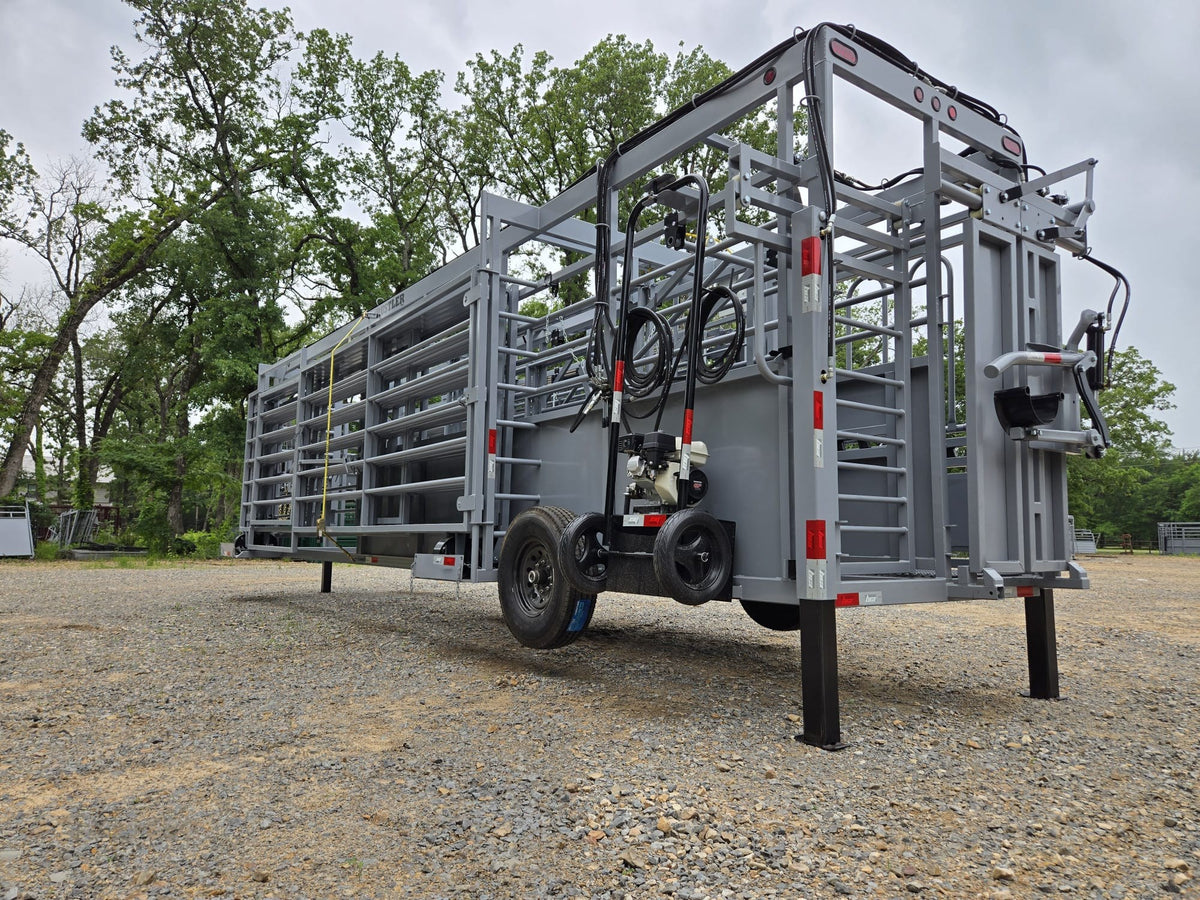

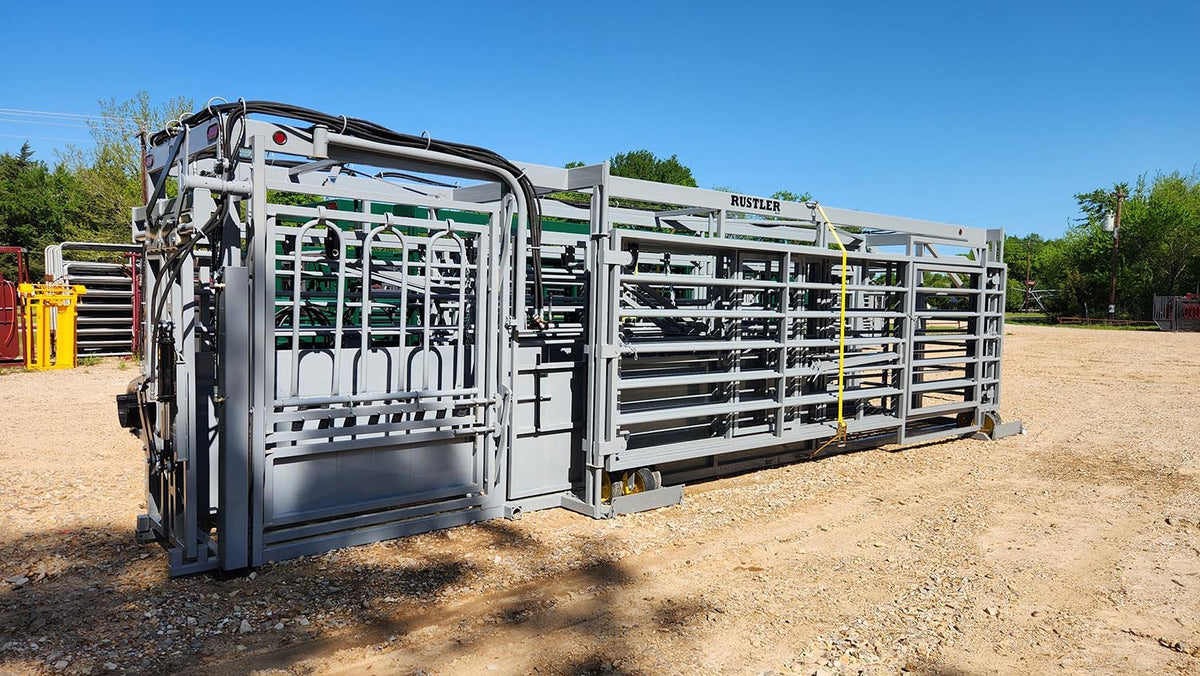

On the unit: headgate, squeeze, and palpation doors; double alley with Bud Box; 21-foot panels with bow gate and walk-through; hydraulic lift; manual squeeze (hydraulic chute upgrade available); head holder and no-backup bars; rebar floor on the chute; 14-ply tires and 10k jacks; 6.5 hp Honda gas (220 electric and 16 hp Kohler options); full powder coat; tow-ready. It weighs about 12,000 pounds.

Full specifications

LayoutTwo pens · double alley (20 × 6 ft) with Bud Box
Panels21 ft each side · bow gate and walk-through
Corral spaceAbout 1,603 sq ft per pen · about 3,205 both · about 3,325 with the alley
Same-day capacityCows over 1,200 lb about 160 · yearlings 600–1,200 lb about 189 · calves under 600 lb about 229 · cow-calf pairs about 94

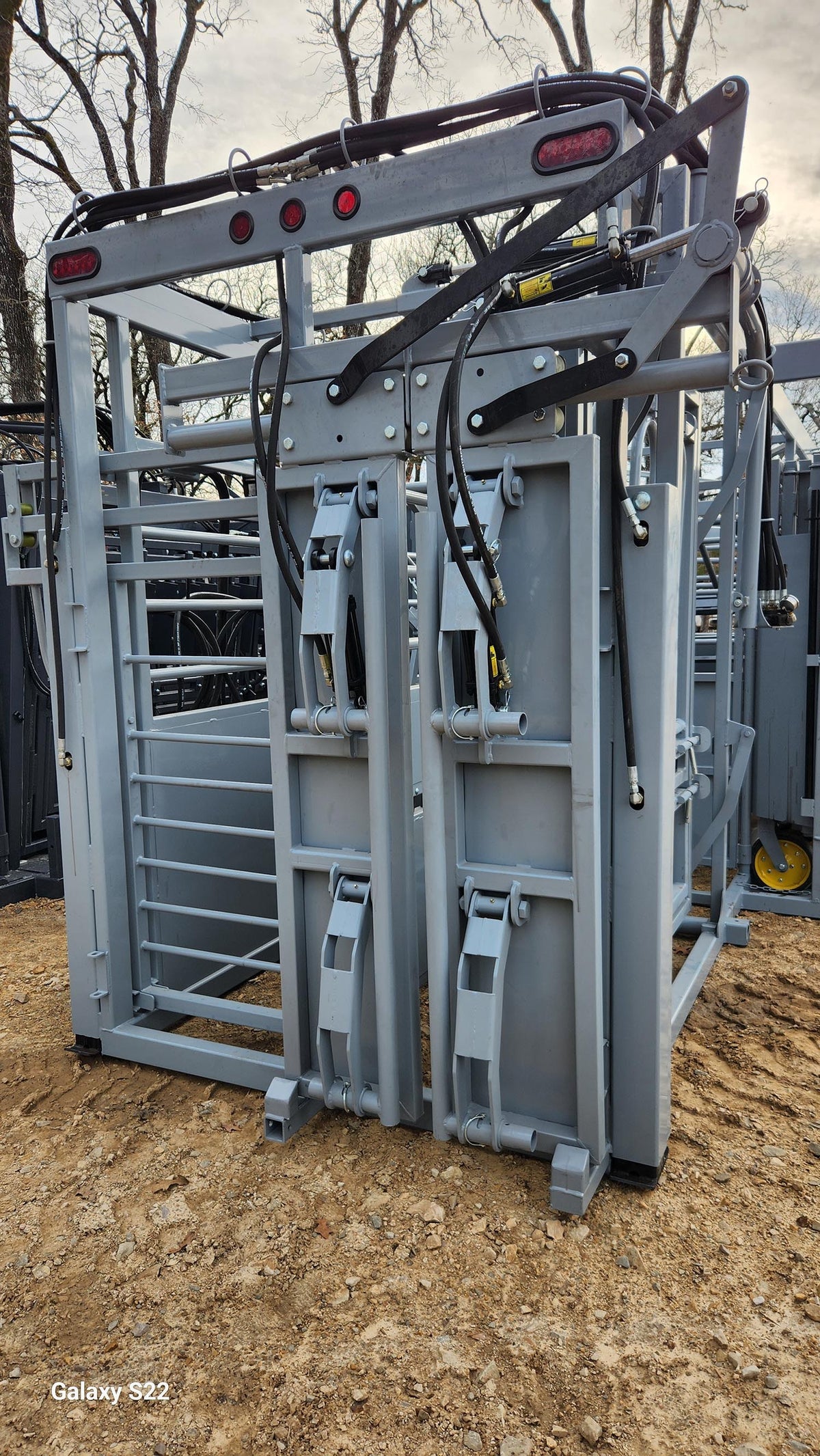

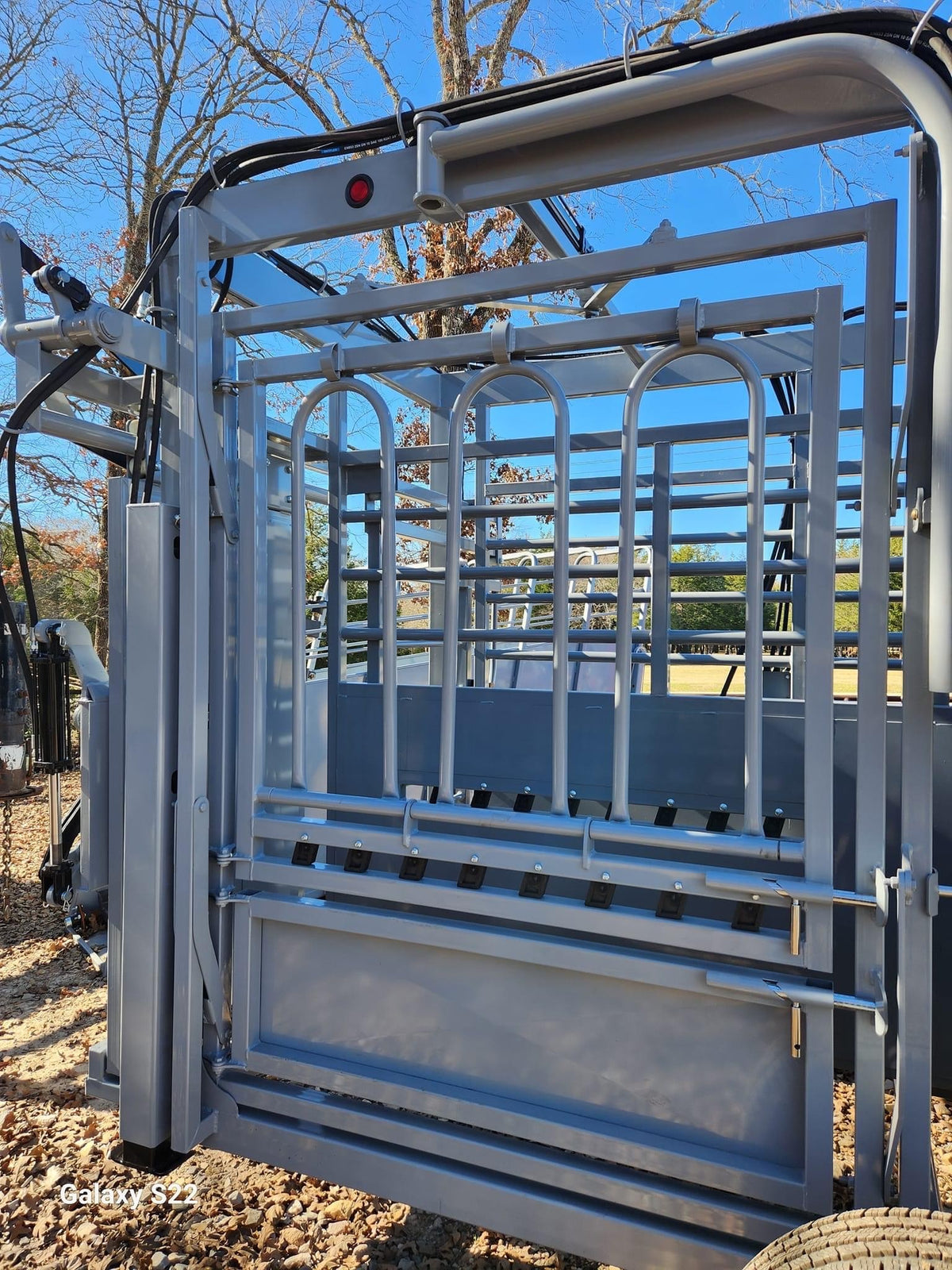

ChuteHeadgate, squeeze and palpation doors · head holder and no-backup bars · rebar floor
SqueezeManual standard · hydraulic chute +$2,400
LiftHydraulic
Power6.5 hp Honda gas standard · 220 electric +$250 (30 amp) · 16 hp Kohler +$400

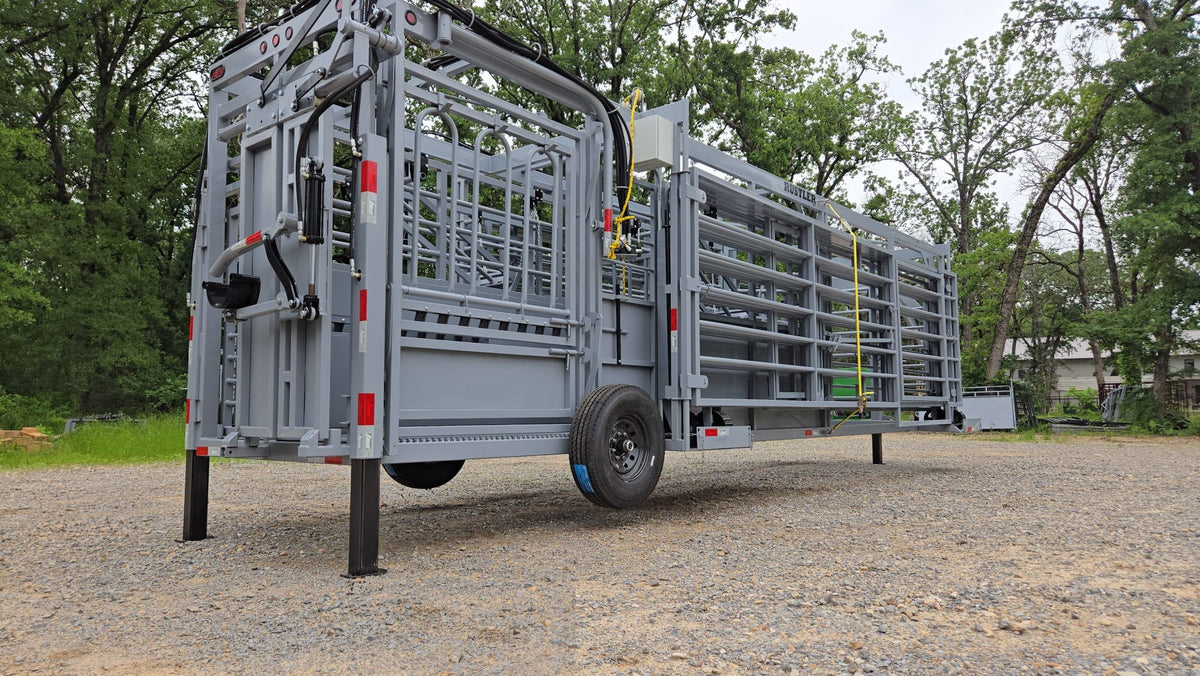

Running gear14-ply tires · 10k lb jacks · tow-ready
WeightAbout 12,000 lbs
FinishFull powder coat
Choose chute style and add-ons ↓

Build your quote

Choose chute style and add-ons. Then email for an official quote — or call with questions.

Includes

Specifications

Configuration

Pick chute style and power unit. This builds your quote request — no cart checkout. 6.5 hp Honda gas is included; 220 electric +$250 (30 amp breaker); 16 hp Kohler key start +$400.

Style
Power unit

Optional add-ons

Select extras, then use Email for a quote below.

Estimated equipment total
$27,500.00
Manual Chute and Hydraulic Lift · portable corral · freight not included

Freight: Freight is quoted separately and added on the official quote. Pickup is available; ask for locations.

Call Text Financing options

Don't see the option you're looking for, or need more customization? Use Call or Email above — we'll quote custom options.

Freight: Official quotes include equipment pricing plus freight. Freight is quoted separately — customer arranges freight or pickup. Call Francisco 903-669-4433 · Jeffery 903-304-9324 · Matt 334-590-7535 · Info@rrlivestock.com · Freight & pickup policy

Email to order / official quote

What owners say

I bought the rustler corral and hydraulic chute. The service has been excellent. They delivered it to GA very quickly so that I could work two sets of cows. Everything went perfectly. Francisco and Jessica were awesome to work with.

Thomas Reese

I couldn’t be happier with my R&R Livestock portable corrals. They’re built just right—heavy-duty and durable without being overbuilt. They’re easy to set up and take down, which makes a big difference when you’re moving from place to place.

I really like the Bud Box setup. It makes it easy to get cattle flowing smoothly into the alleyway without fighting them. Having the scale built into the system is also really handy, and the hydraulic squeeze works great.

Overall, it’s a well-thought-out, durable setup that makes working cattle easier and more efficient. I couldn’t be happier with it, and it was definitely worth the investment.

Caleb ValdezCortez, Colorado
